Sustainable Sample Preparation: Reducing Consumable Waste in High-Volume Labs
Sustainable Sample Preparation: Reducing Consumable Waste in High-Volume Labs
Walk through a busy metallography lab at the end of a shift and the evidence is right there in the bins: stacks of used abrasive discs, half-spent polishing cloths, resin cups that never quite got filled to the right ratio, and cut-off wheels retired long before they were actually worn out. None of this is anyone’s fault exactly. It’s just what happens when a lab is optimized purely for throughput. But as material costs climb and sustainability moves from a nice-to-have to a line item that management actually tracks, more labs are asking a fair question: how much of that waste is necessary, and how much is just habit?
Where the Waste Actually Comes From
Consumable waste in sample preparation rarely comes from one dramatic source. It builds up from a handful of small, repeated decisions made dozens of times a day. A cutting disc pulled off the shelf because it’s the one that’s always used, not because it’s the right specification for that particular alloy. A grinding disc changed out a step early because nobody timed how much life was actually left in it. Resin mixed in a slightly-too-large batch every time, because measuring exactly for one mount takes longer than eyeballing enough for two. Individually these look trivial. Multiplied across a lab running dozens of mounts a day, they add up to a real number on the annual consumables budget.
Surface Grinding Techniques: Perfect Steel Sample Preparation for OES/XRF
The other major source is rework. Every mount that has to be repeated because of edge rounding, relief, or a poorly chosen etch doesn’t just cost the technician’s time, it doubles the consumable footprint of that sample: two cutting discs, two rounds of grinding paper, two batches of resin instead of one. In a high-volume lab, rework rate is often a bigger sustainability lever than any single consumable choice.

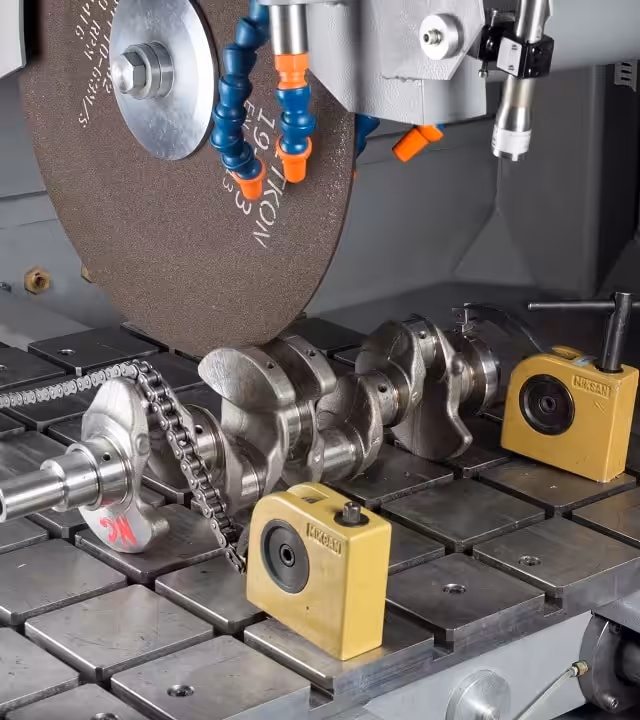

Matching the Cutting Disc to the Material
Cutting discs are the easiest place to start, because the failure mode is so visible: a disc that’s wrong for the material either wears out fast, burns the sample, or both. A disc formulated for hard, brittle materials will wear unevenly and dull quickly on a soft, ductile alloy, while a disc suited to soft metals will overheat and glaze over on something like a hardened tool steel. Either mismatch means more discs consumed per cut and a higher chance the sample itself needs to be re-prepared because of heat damage in the cut zone.
The fix isn’t complicated, it’s just discipline: keep a short reference chart at the cutting station mapping alloy families to disc specification, rather than relying on whichever disc happens to already be mounted. Metkon‘s range of cutting consumables is organized around exactly this kind of match — different bond hardness and abrasive grain for ferrous versus non-ferrous, soft versus hardened materials — and picking correctly the first time is consistently cheaper than re-cutting a sample that came out overheated or cracked.
Resin Selection and Portion Control
Mounting resin is one of the more overlooked waste streams, mostly because it’s mixed in small batches that don’t feel significant on their own. Two habits drive most of the unnecessary consumption. The first is over-mixing: preparing more resin than a given batch of mounts actually needs, because it’s faster than calculating the precise volume. The second is choosing the wrong resin system for the job, which leads to shrinkage, poor edge retention, or bubbling that forces a remount.
Automated Sample Preparation | Cut Impact, Save Time & Costs
Automated mounting presses with programmable dosing largely solve the first problem, since the system meters resin to the mold size rather than leaving it to a technician’s estimate. The second is a matter of matching resin type to the sample: a fast-curing phenolic is fine for routine ferrous samples, but a softer or more porous material usually needs a castable or vacuum-impregnating resin to avoid the kind of edge damage that ends in a repeat mount. Getting this right the first time removes an entire category of wasted resin, grinding paper, and cutting stock, since a mount that fails inspection consumes just as much material as one that passes.
Where Automation Actually Reduces Waste
Automated grinding and polishing systems are usually justified on consistency and technician time, but the consumable savings are just as real, if less discussed. A manual polishing step run a little too long, or with uneven pressure, wears through a cloth or film faster than necessary and increases the odds of over-polishing a mount, which sometimes means starting the surface prep over. Programmable systems that control pressure, speed, and cycle time consistently get a surface to the right finish in the fewest necessary steps, which means fewer discs and cloths consumed per sample and a lower rework rate overall.
There’s a secondary effect worth mentioning: automated systems make it much easier to track exactly how many samples a given consumable actually processed before it was changed, since the cycle count is logged rather than estimated. That data turns a rough visual judgment call into a decision based on the number of cycles a consumable is actually rated for, which on its own tends to extend consumable life once labs start paying attention to it.
Practical Steps for a Lower-Waste Lab
None of this requires an overhaul. A few changes, applied consistently, account for most of the improvement labs typically see:
- Post a simple disc-and-resin selection chart at each station, so the choice depends on the material, not on habit.
- Track consumable life against cycle counts rather than visual judgment, wherever the equipment allows it.
- Standardize resin dosing through a programmable mounting press instead of manual measuring.
- Review the rework rate monthly. A high rework rate is almost always a bigger cost driver than the price of any single consumable.
- Batch similar materials together during a shift, so cutting and grinding parameters don’t have to be reset, and re-set, between dissimilar samples.
The Bigger Picture
Sustainability in a metallography lab isn’t really a separate initiative from good practice, it’s mostly what good practice already looks like once someone starts measuring it. Matching consumables to the material, dosing resin accurately, and using automation to hit the right surface finish on the first attempt were always the right calls for quality reasons. It turns out they’re also the right calls for cost and waste. Labs that start tracking consumable use per sample, rather than per shift, tend to find the two goals point in exactly the same direction.
