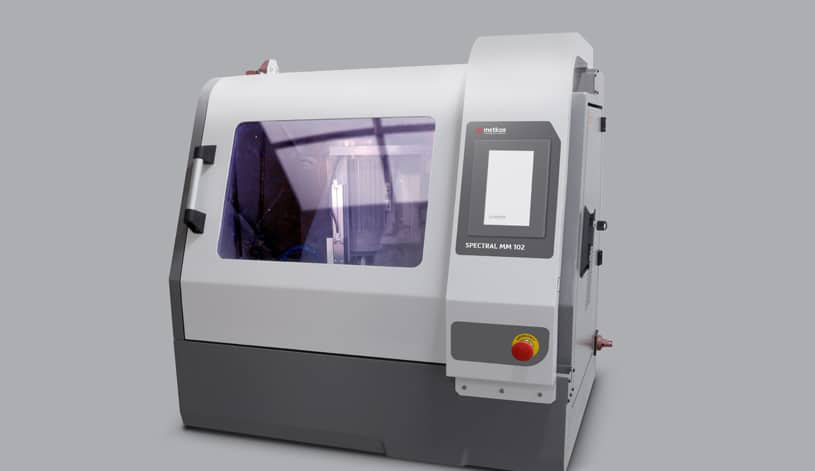

SPECTRAL MM 102
Spectroscopic Automatic Fine-Surface Milling Machine

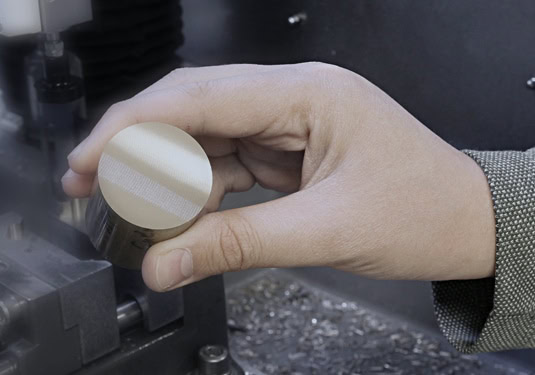

SPECTRAL MM 102 is designed for automatic sample preparation for OES and XRF analysis, delivering fast and repeatable fine-surface milling. It supports both non-ferrous and ferrous metal samples, including steels up to 50 HRC—helping labs and plants standardize spectrometric results.
SPECTRAL MM 102
Spectroscopic Automatic Fine-Surface Milling Machine
SPECTRAL MM 102 is designed for automatic sample preparation of OES and XRF analysis.
It is fast and efficient in providing high quality specimen surface thus saving time. SPECTRAL MM 102 has advanced techniques and software with programmable HMI touch screen controls increasing the productivity, sample consistency and operator comfort. With the ability to store and recall preparation programs on the LCD screen, same consistent results are obtained.
SPECTRAL MM 102 is a perfect choice for milling non-ferrous and ferrous metals, including steels up to 50 HRC.
BENEFITS
Metkon products optimize your sample preparation processes with high precision, efficiency, and ease of use.
SMALL FOOTPRINT, LARGE CAPACITY AND POWERFUL MILLING MOTOR
- It can be used both as bench-top and with floor cabinet.
- Small enough for laboratory, sturdy enough to process hard materials up to 50 HRC.
MOST POWERFUL MILLING MACHINE IN ITS CLASS
- Most powerful motor in its class.
- Perfect for plants needing a “second-top” machine, or an additional sample milling machine where space is limited.
- New reliable Y-axis and Z-axis driving system.
- New axis motors provide faster and precise positioning.
FULLY AUTOMATIC OPERATION
- Extraordinary access for easy handling with sliding door.
- Maximum operator safety. The axis (motor & table) does not move if the hood is not closed.
- 7” coloured HMI touch screen and user-friendly software allow easy view and control of all steps. Up to 99 different milling programs can be saved.
FULLY AUTOMATIC OPERATION
- Controlled Material Removal allows you to preset the amount of material to be removed very accurately.
- Multi-pass milling: It is possible to set the number of passes and the milling depth of each pass.
- Program control prevents operating errors. Access to the program parameter is only possible using a password.
- New pneumatic clamping device with optional jaws to hold variety of sample shapes.

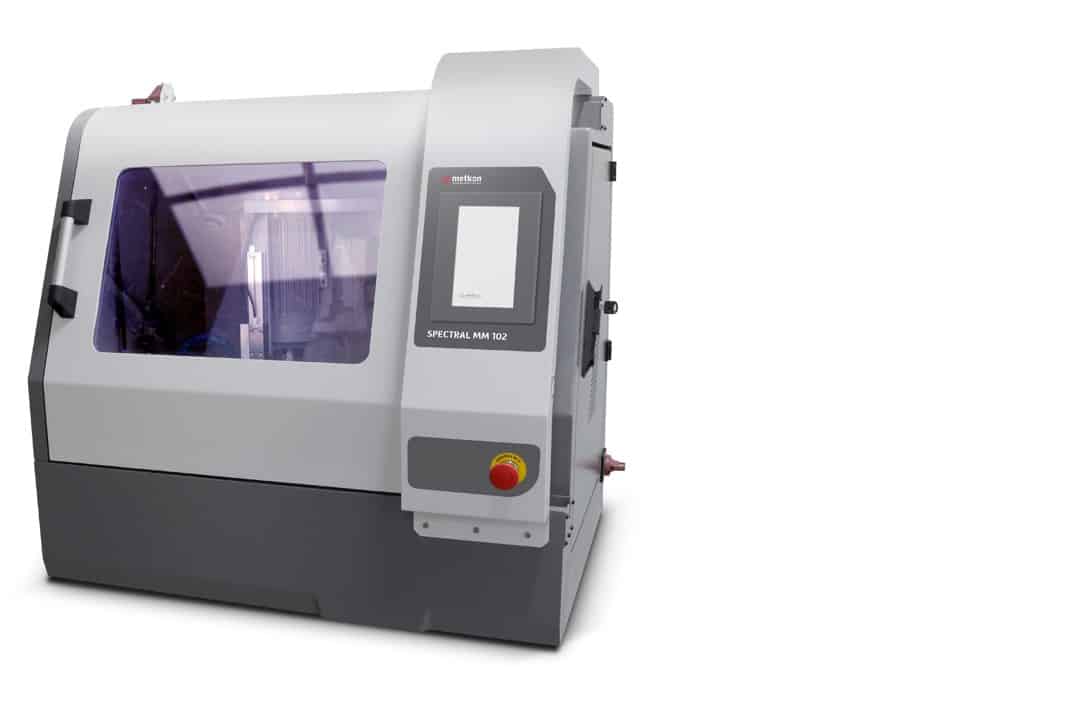

FEATURES
A wide product range, programmable controls, and durable construction meet all sample preparation needs.
POWERFUL MILLING MOTOR
Powerful 3 kW motor that can overcome the hardest and largest samples
- Most powerful motor in its class.

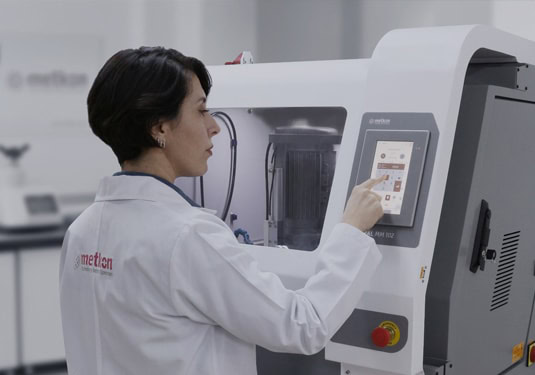

SMALL FOOTPRINT
- It can be used both as bench-top and with floor cabinet.
- Small enough for laboratory, sturdy enough to process hard materials up to 50 HRC.
MAXIMUM OPERATOR SAFETY
- Highest level of safety standards. Several safety circuits guarantee optimum protection for the operator.
- Equipped with numerous safety features to provide maximum operator and machine safety.
- Maximum operator safety. The axis (motor & table) does not move if the hood is not closed.
7” COLOURED HMI TOUCH SCREEN
7” coloured HMI touch screen and user-friendly software allows easy view and control of all steps. Up to 99 different cutting program can saved.
AUTOMATIC MEASUREMENT SYSTEM
Automatic Sample Height Measurement System for full
cyclic operation.

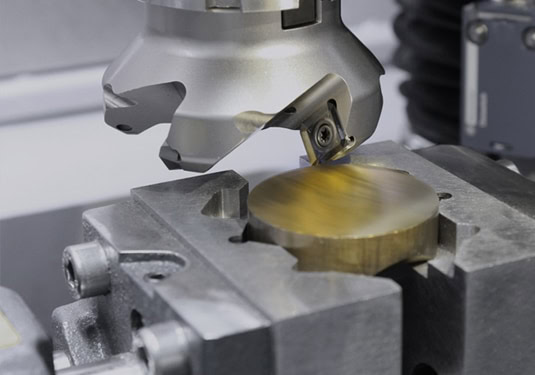

FULLY AUTOMATIC OPERATION

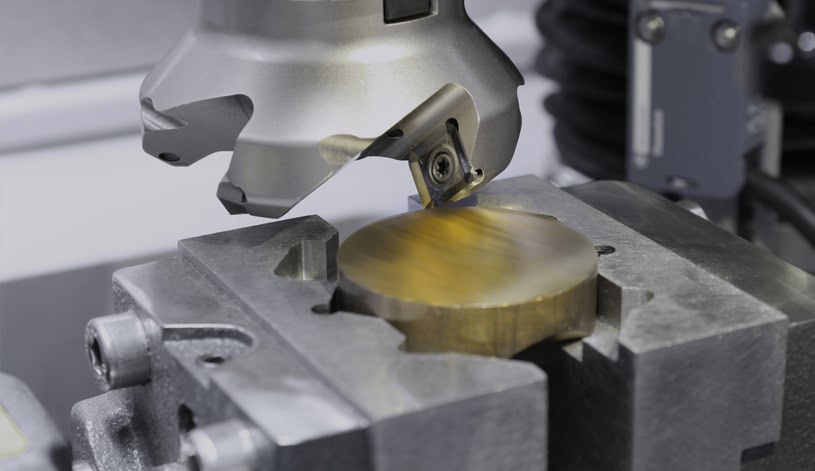

SPECTRAL MM 102 is equipped with automatic sample feed with fine speed control. Fast advance and reverse are available. All important parameters of the milling process like feedrate, milling depth, spindle speed are adjustable on the touch screen LCD. The spindle speed can be adjusted to different materials to achieve optimum surfaces. Reproducible flat surfaces are obtained with column mounted on taper bearings.
TECHNICAL DATA
Technical specifications compliant with international standards ensure reliable and consistent results.
| Order No | 81 04 |
| Model | SPECTRAL MM 102 |
| Milling Head Movement | Auto |
| Table Feeding Y-axis | Auto |
| HMI Touch Screencontroller, (inch) | 7" |
| Milling Dia. Capacity, (mm) | Ø60 |
| Max Sample Size, Height (mm) | 60 mm |
| Y-axis travel, (mm) | 210 mm |
| Z-axis travel, (mm) | 60 mm |
| Milling Power kW(S1) | 3 |
| Milling Head Speed, (rpm) | 500 - 4000 |
| Table Feedrate, (mm/s) | 500μ-30000μ |
| Dimensions, WxDxH (cm) | 94x83x97 |
| Dimensions, WxDxH (with cabinet, cm) | 94X83x175 |
| Weight, (kg) | 300 |
| Weight, (with cabinet, kg) | 385 |
| Max Milling Depth (mm) | 3 (for non ferrous) |
| Axial Feeding (mm) | Auto |
