DUROLINE R1

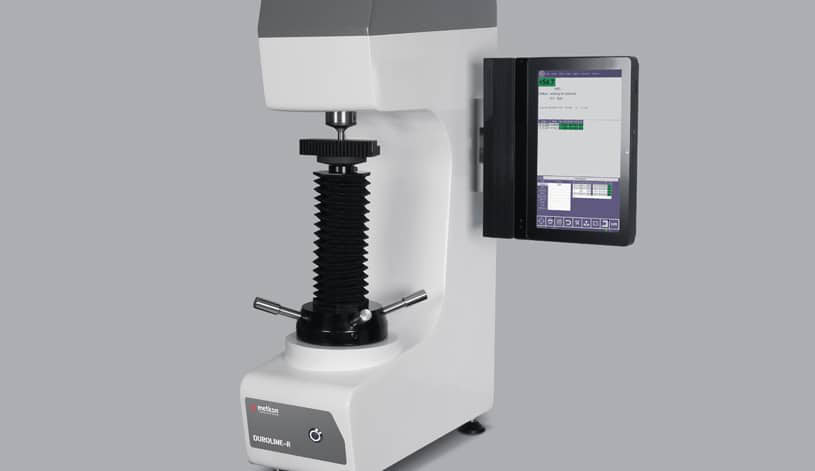

Rockwell/Superficial Rockwell Hardness Tester
DUROLINE R1, ROCKWELL /SUPERFICIAL ROCKWELL
CLOSED-LOOP CONTROLLED AUTOMATIC HARDNESS TESTING
Smart hardness testing with smashing performance
DUROLINE R1

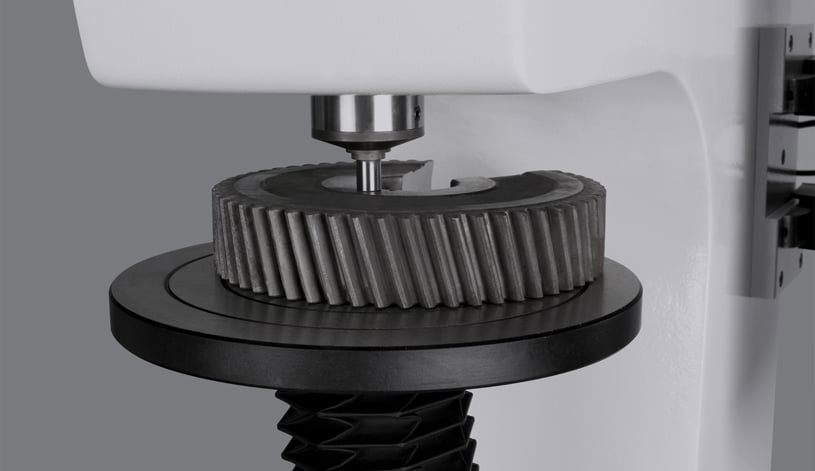

DUROLINE R-Series are ideal instruments for quality assurance, quality control, research and metallurgical departments to monitor the hardness during fabrication and after heat treatment or welding as well as for the performance analysis on metal parts and new alloys. Typical applications are determining the Rockwell hardness of steel alloys and metal components, small cut samples or large pieces, cylinrical or spherical parts, pipes, large rings, gears, crankshaft and performing Jominy test etc.
The DUROLINE R Rockwell hardness tester series offers a highly functional and reliable automated indentation test & measurement system.
BENEFITS
Metkon products optimize your sample preparation processes with high precision, efficiency, and ease of use.

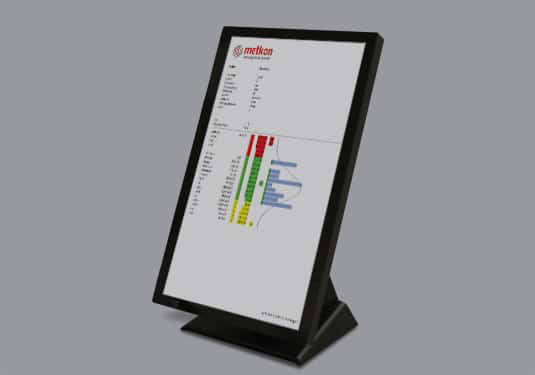

AUTOMATIC TEST CYCLE
The test cycle for Rockwell hardness testing such as preload application, main load application and depth measurement, is performed automatically. No manual preload application is required. This provides quick and simple tests with maximum repeatibility.

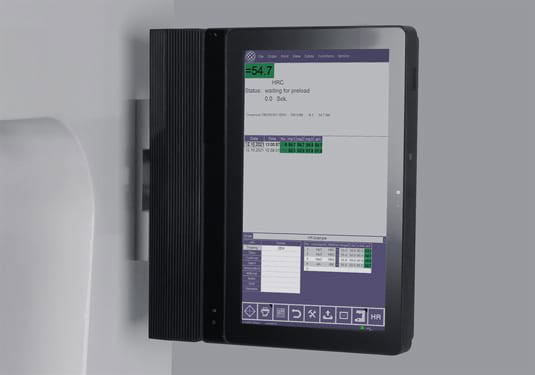

ALL IN ONE PC WITH 11.6" MULTI-TOUCH DISPLAY & N-SURE SOFTWARE
- A Windows operated industrial All in One PC is attached on the right side of hardness tester. Equipped with powerful Intel processor and SSD drive to provide smooth and fast operation.
- The METKON N-Sure hardness test and measurement software is pre-installed on this PC.

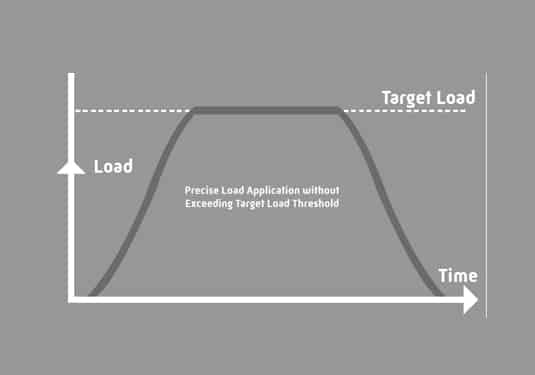

CLOSED-LOOP LOAD CELL CONTROLLED FORCE APPLICATION
DUROLINE R-Series testers equipped high technology closed-loop load cell system. This system provides wide load range with maximum accuracy and repeatability for all test loads without exceeding target load threshold.

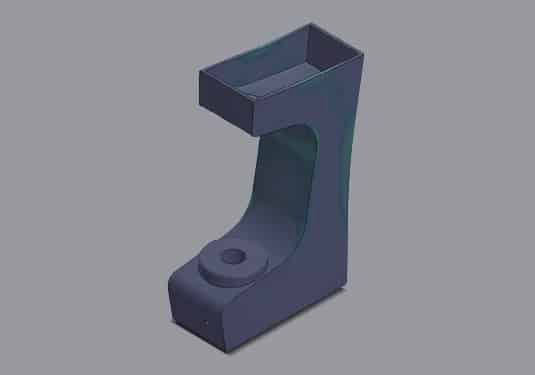

VERY ROBUST CAST-IRON HOUSING & MECHANICAL DESIGN
- The housing of DUROLINE R is made of rugged cast iron and all areas where bending can ocur have been strengthened. This allows ultra high precision depth measurement after test force application for Rockwell hardness calculation.
- The spindle can lift the heaviest parts and can withstand the maximum test force with zero displacement.

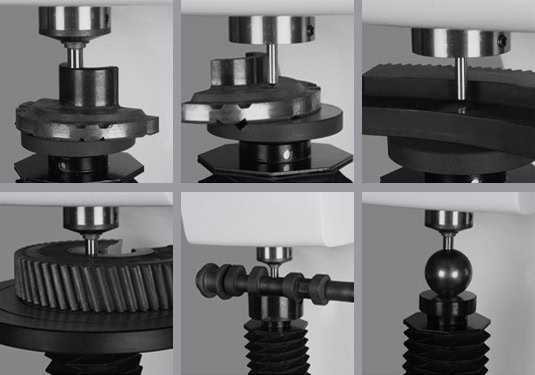

IDEAL FOR TESTING VARIOUS SAMPLE TYPES
DUROLINE R is ideal for quick and easy testing of many different sample types. It has large sample accomodation capacity and various optional test anvils available for various applications.
FEATURES
A wide product range, programmable controls, and durable construction meet all sample preparation needs.
ALL IN ONE PC WITH 11.6" MULTI-TOUCH DISPLAY & N-SURE SOFTWARE
- A Windows operated industrial All in One PC is attached on the right side of hardness tester. Equipped with powerful Intel processor and SSD drive to provide smooth and fast operation.
- The METKON N-Sure hardness test and measurement software is pre-installed on this PC.

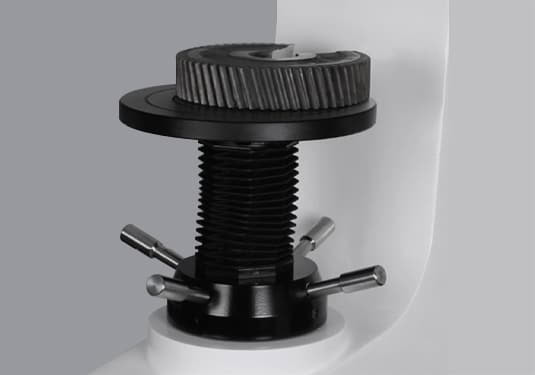

VERY ROBUST CAST-IRON HOUSING & MECHANICAL DESIGN
The spindle can lift the heaviest parts and can withstand the maximum test force with zero displacement.
QUICK START
The test cycle for Rockwell hardness testing such as preload application, main load application and depth measurement, is performed automatically. This provides quick and simple tests with maximum repeatibility.
CLOOSED-LOOP CONTROLLED LOAD APPLICATION BY LOAD CELL TECHNOLOGY
This system provides wide load range with maximum accuracy and repeatability for all test loads without exceeding target load threshold.
EASILY REMOVABLE CLAMPING NOSE
IDEAL FOR TESTING VARIOUS SAMPLE TYPES
DUROLINE R has large sample accomodation capacity and various optional test anvils available for various applications.
TECHNICAL DATA
Technical specifications compliant with international standards ensure reliable and consistent results.
| ORDER NO | 72 51 |
| MODEL NO | DUROLINE R1 |
| Rockwell Regular Scales as per ISO 6508 & ASTM E18 | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW |
| Rockwell Regular Scales as per ASTM E18 | HRLW, HRMW, HRPW, HRRW, HRSW, HRVW |
| Rockwell Superficial Scales as per ISO 6508 & ASTM E18 | HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW |
| Rockwell Superficial Scales as per ASTM E18 | HR15WW, HR30WW, HR45WW, HR15XW, HR30XW, HR45XW, HR15YW, HR30YW, HR45YW |
| Brinell Depth Scales | HBT 1/5 to 10/250 |
| Preload for Superficial Rockwell (kgf) | 3 kgf |
| Preload for Rockwell (kgf) | 10 kgf |
| Test Loads for Superficial Rockwell (kgf) | 15 kfg, 30 kgf, 45 kgf |
| Test Loads for Rockwell (kgf) | 60kfg, 100kgf, 150kgf |
| Test Loads for Brinell Depth (kgf) | 5 kgf to 250 kgf |
| Test Load Accuracy | As per ISO 6508 and ASTM E18 |
| Load Force Application | Motorised force application with closed loop load cell control, Automatic preload, Automatic main load, dwell, unload |
| Load Selection | By METKON N-Sure test settings |
| Controller | Built-in Windows operated All in One PC with 11.6” HD Multi-Touch Screen, communicates the hardness tester electronics by CANBUS Protocol |
| Interface Network | USB(x6), HDMI(x1), RS232(x2), LAN(x1) and Wireless LAN |
| Operating System | Windows 10 |
| User Interface Software | METKON N-Sure |
| Dimensions, WxDxH | 200x535x804 mm |
| Specimen Accomodation | Vertical 248 mm, Horizontal (throat depth) 181 mm |
| Weight | 132 kgs |
| Mains | 100-240 V, 1-phase, 50/60 Hz, autosetting |
