GEOCUT 302-S
PRODUCTS
GEOCUT 302-S

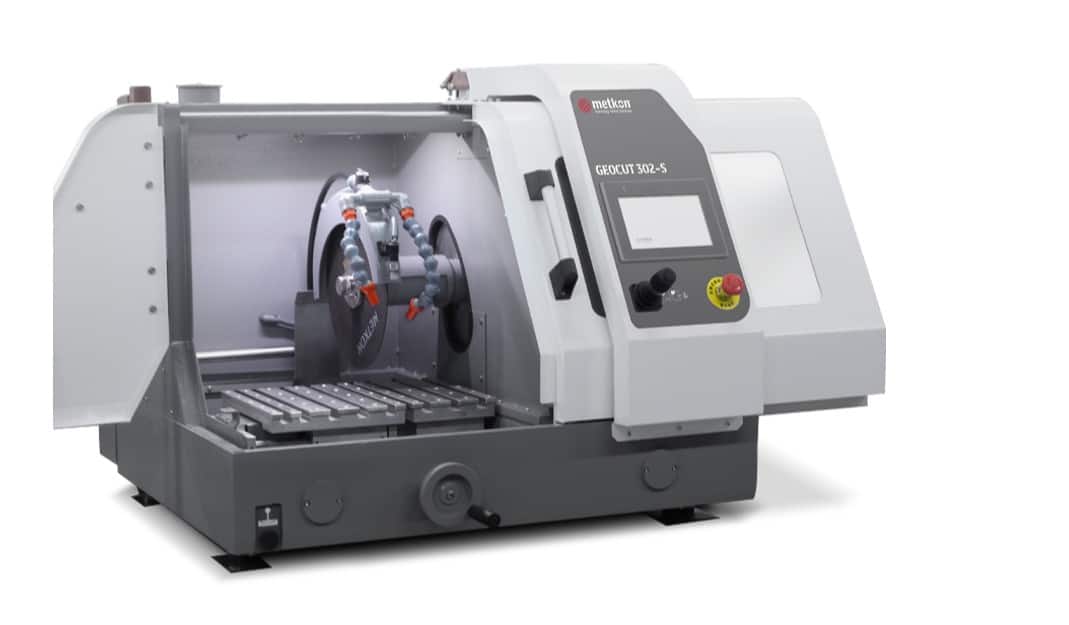

Geological Automatic Cutting Machine
GEOCUT 302-S is an Advanced Geological Cutting Machine that is ideal for sectioning of rocks, ceramics, minerals, glass, concrete and geological specimens.
X-Y table is available as standard for parallel and serial cutting.
GEOCUT 302-S
GEOCUT 302-S is specially designed for cutting large and irregular shaped petrographic specimens. It offers the advantage of combining different cutting techniques and methods into the same machine to obtain superior cut surfaces for a broad range of heavy duty cutting applications.
- Extraordinary access for easy handling
- Ability to use Ø250/300 mm diamond blade.
- Cutting capacity up to 110 mm in diameter.
- Various Clamping systems available for small to large size or irregular sample shapes.
- Z-axis Chop cutting
- Y-axis Table-feed Cutting
- X-axis Parallel Cutting
BENEFITS
Metkon products optimize your sample preparation processes with high precision, efficiency, and ease of use.
SMALL FOOTPRINT, LARGE CUTTING CAPACITY AND POWERFUL CUTTING MOTOR
It can be used both as bench-top and with floor cabinet.
Small enough for laboratory, large enough to clamp and cut big samples. Most of the big samples can be positioned on the table.
Powerful 4 kW cutting motor and advanced cutting methods can overcome the hardest and largest samples.
MOST VERSATILE CUTTING MACHINE IN ITS CLASS
- It can be configured both as manual, semi-automatic and fully automatic.
- Variable cut-off wheel speed (frequency converter) is offered as standard
OPERATOR COMFORT
- X-Y axes can be controlled with a joystick. It allows easy and fast positioning. Two hand operation for maximum safety.

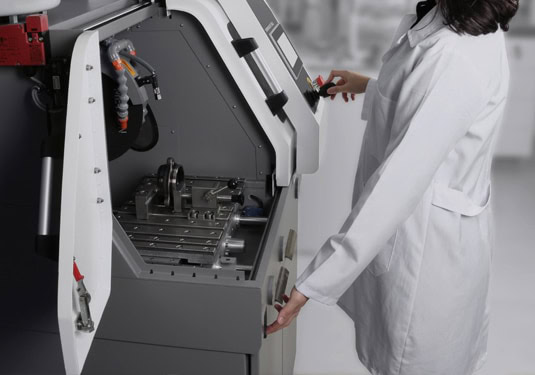

- Extraordinary access for easy handling with sliding door and side openings.
- 7” coloured HMI touch screen and user-friendly software allows easy view and control of all steps. Up to 99 different cutting program can saved.
FEATURES
A wide product range, programmable controls, and durable construction meet all sample preparation needs.

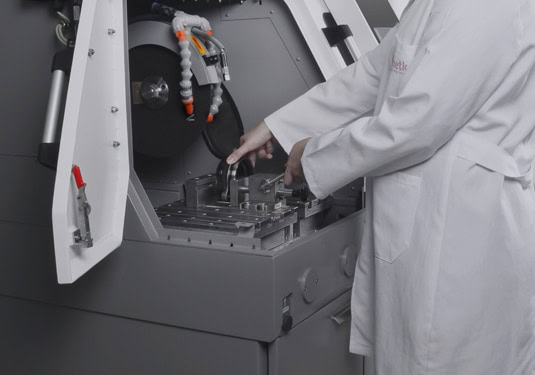

SMALL FOOTPRINT, LARGE CUTTING CAPACITY!
Small enough for laboratory, large enough to clamp and cut big samples. It can be used both as bench-top and with floor cabinet. Most of the big samples can be positioned on the table. Ability to work with up to Ø300 mm cut-off wheels. Large cutting capacity up to Ø110 mm for cylindirical specimens.
POWERFUL CUTTING MOTOR!
Powerful 4 kW cutting motor and advanced cutting methods can overcome the hardest and largest samples. Cut-off wheel speed can be adjusted from 600 to 4000 RPM to make possible to cut every kind of materials. Laser alignment unit is optionally available for precise positioning of the sample for the exact cutting line.
EFFICIENT SAMPLE COOLING AND FILTRATION
Two cooling nozzles are positioned both right and left sides of cut-off wheel. Position of nozzles can easily be adjusted according to sample. Powerful pumps provides very high flowrate of cooling liquid. Thus, no burns occur on the specimen surface. Recirculating coolant tank has an 80 lt capacity and it can be placed inside the cabinet of GEOCUT 302. Optional level sensor always monitors the fluild level and inform operator when fluid level is low.
INSTAFEED CUTTING (AUTO FEEDRATE)
Feedrate is the most important factor when cutting specimen. High feedrate values may cause sample burning, excessive wheel wear, motor overload and even cut-off wheel breakage. Low feedrate values increase cutting time. With Auto Feedrate Cutting(Instafeed Cutting) method, feedrate is adjusted automatically to an optimum level according to motor load continuously. Thus cutting is completed in shortest possible time without burning specimen.

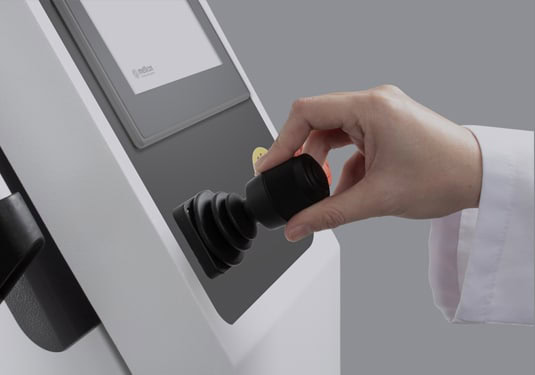

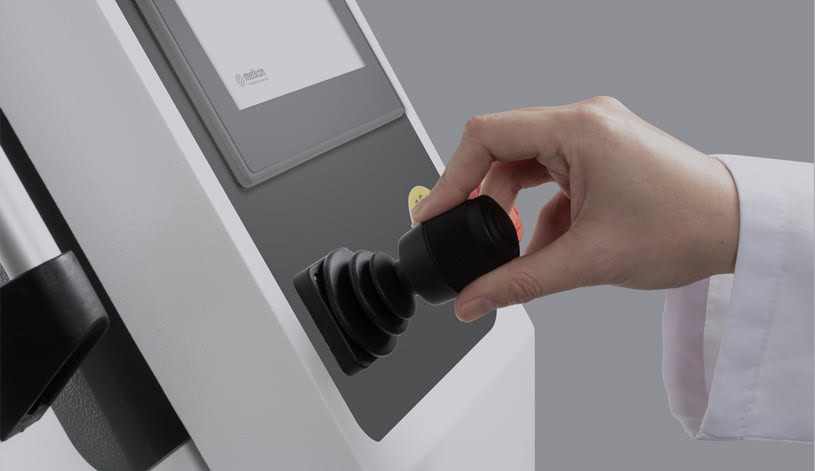

JOYSTICK CUTTING
Possibility to make manual cutting via joystick. It is very useful when you need to cut a sample quickly without programming. The feed speed can be adjusted easily by tilting joystick. Maximum feed speed can be limited from the touch panel.

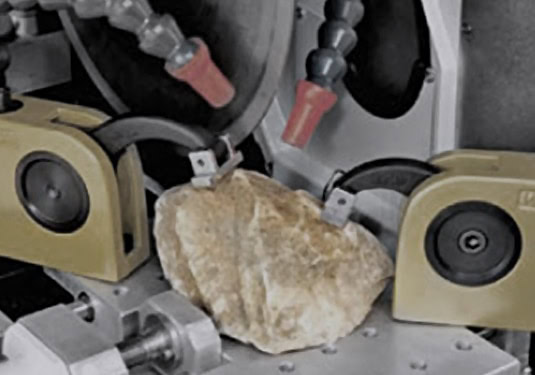

RAPID PULSE CUTTING
Used for cutting very hard and heat sensitive specimens. Table or wheel continuously goes forward and backward very quickly in a short period until the end of cutting process. It reduces contact time and allows coolant circulation between cutting wheel and sample during whole cutting process. This allows very low heat generation and also reduces cutting time.

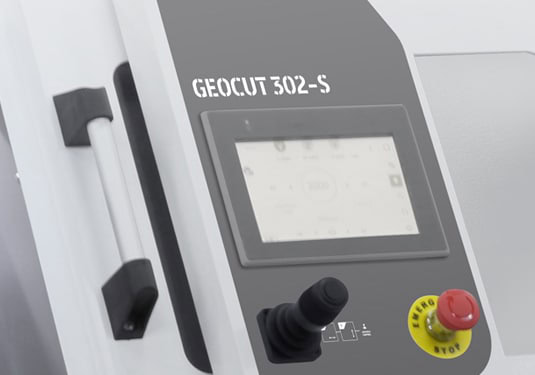

EASY OPERATION WITH TOUCH SCREEN AND JOYSTICK
A large colored 7″ HMI touch screen is used for operating machine. It has advanced software with very easy use. All cutting parameters [Wheel Speed, Feedrate, Travel, Cutting Modes, Starting Position, etc…] can be set and stored in memory under a specific program number. Wheel and table can be positioned easily via joystick in X-Y-Z axes.
FUMEFILTER, FUME AND MIST REMOVING UNIT
An advanced fume and mist removing unit is optionally available for GEOCUT 302. It collects, filters and condenses the fume and vapor from the cutting chamber which generated during cutting operation. It does not allow intense smoke generation inside the cutting chamber and mist formation on glasses.
TECHNICAL DATA
Technical specifications compliant with international standards ensure reliable and consistent results.
| ORDER NO | 14 05 |
| MODEL NO | GEOCUT 302-S |
| Max. Wheel Diameter | Ø300 mm |
| Max. Cutting Capacity, Ø | Ø110 mm |
| Max. Cutting Capacity, HxD | #70x200 mm |
| Z-Axis Travel, (mm) | 125 |
| Y-Axis Travel, (mm) | 220 |
| X-Axis Travel, (mm) | 95 |
| T-Table Dimension, (mm) | (395+95)x275 |
| T-Slot Dimension, (mm) | 12 mm |
| Cutting Motor Power (S1) | 4 kW |
| Wheel Speed, RPM | 2800 |
| Chop Cutting, Z- Axis | Manual |
| Table Feed Cutting, Y-Axis | Automatic |
| Parallel Cutting, X-Axis | Automatic |
| Size WxDxH, (cm) | 90x94x66.5 |
| Weight | 250 kgs |
BROCHURE
Explore our catalogue detailing the technical specifications and application areas of Metkon products.
GET YOUR BROCHURE FOR
GEOCUT 302-S
Discover everything you need to know about the Geocut 302-S with our comprehensive brochure.
